Here's a clear, structured summary of the provided information about bimmer-tool for BMW cars, optimized for readability and practical use:


🛠️ bimmer-tool – DPF & OBD2 Diagnostics for BMW Cars

bimmer-tool is a powerful diagnostic app designed for BMW vehicles (2000–2024), enabling users to:

  • 📌 Read and clear fault codes
  • 🔁 Request DPF (Diesel Particulate Filter) regeneration
  • 🧪 Monitor live engine data (air mass, fuel pressure, intake pressure, exhaust gas pressure, injector adjustments)
  • 📊 Log data to CSV files for analysis
  • 🔋 Reset service intervals (oil, brakes, service due)
  • 🔄 Reset DPF adaptation values (after filter replacement)
  • 💡 Register battery replacement (without altering battery settings)
  • 🔌 Reset lamp circuits blocked by short-circuit errors

Supported Cars

  • All BMW models from 2000–2024
  • Model years 2008 and newer: Full functionality via USB, Bluetooth, or Wi-Fi.
  • Models before 2008 (e.g., E46, E39, E83, E53):
    • Limited functionality
    • Only works reliably with K+DCan USB cable
    • Wireless ELM327 adapters may not connect or lack full features

⚠️ Important: For older models, K+DCan cable is mandatory. Wireless adapters are not recommended.


🔌 Recommended OBD Adapters

Adapter Type Best For Notes
K+DCan USB Cable All models (best performance) Most reliable. Requires USB-OTG cable for phones.
ENET Cable / Wi-Fi Adapter F/G series (2012–2024) Use with USB-C to Ethernet adapter.
ELM327 Bluetooth Modern BMWs (2008+) Only genuine ELM327 or PIC18-based adapters. Slower than USB. May fail on older engines.
ELM327 Wi-Fi Older and newer models Less stable; disable mobile data on phone to prevent disconnections.

🔧 Recommended Adapters


📝 Quick Start Guide

  1. Connect the OBD adapter to your car’s OBD2 port (under the dashboard).
  2. Turn ignition to ON (not start).
  3. Pair the adapter to your phone:
    • USB: Use USB-OTG cable. Select bimmer-tool when prompted.
    • Bluetooth: Go to Bluetooth settings → Pair device (PIN: 0000 or 1234).
    • Wi-Fi: Turn off mobile data. Connect to the adapter’s Wi-Fi network.
  4. Open bimmer-tool → Go to 'Car' → Select model and year.
  5. Go to 'Connection' → Choose:
    • Connection type (USB/Bluetooth/WiFi)
    • Adapter type
    • Communication protocol (e.g., K+DCan, D-Can, ELM327)
  6. Tap 'Connect'.

✅ Tip: If connection fails, force-stop all diagnostic apps (including bimmer-tool), or restart the phone.


Common Problems & Fixes

Issue Solution
"Engine No Response" (cars up to 2007, Bluetooth/WiFi) In app → Advanced Settings → Select ATWM mode
No connection despite correct settings Force stop all diagnostic apps, restart phone, reconnect
Adapter not found Check cable/adapter compatibility; ensure not in use by another app

📋 Why These Permissions?

Permission Purpose
Storage Required for USB adapter support
Photos/Media/Files To save CSV logs
Bluetooth (pairing & settings) For Bluetooth adapters
Full network access For Wi-Fi adapter communication
Approximate location Not used – only a technical requirement (Bluetooth location detection not activated)

🔒 Your location is not tracked or used.


📢 Latest Update: Version 3.7.6-L (Nov 10, 2024)

New Features

  • Diesel idle speed adjustment – Tune idle RPM for diesel engines
  • Throttle body control – Adjust throttle response (manual override mode)

❓ Need Help?

📩 Contact support via email (available at the bottom of the app’s webpage).


📌 Final Notes

  • Use only trusted, compatible OBD adapters for best results.
  • For pre-2008 BMWs, K+DCan is required – don’t rely on wireless ELM327.
  • Always turn off other OBD apps before connecting.
  • Data logging to CSV is great for tracking long-term engine health.

bimmer-tool is the most complete diagnostic tool for BMW owners – from DPF maintenance to engine tuning and service resets.

🔗 Get it from your app store or visit the official site (link in app).


Let me know if you'd like a PDF version, printable checklist, or troubleshooting flowchart!

Capturas de pantalla

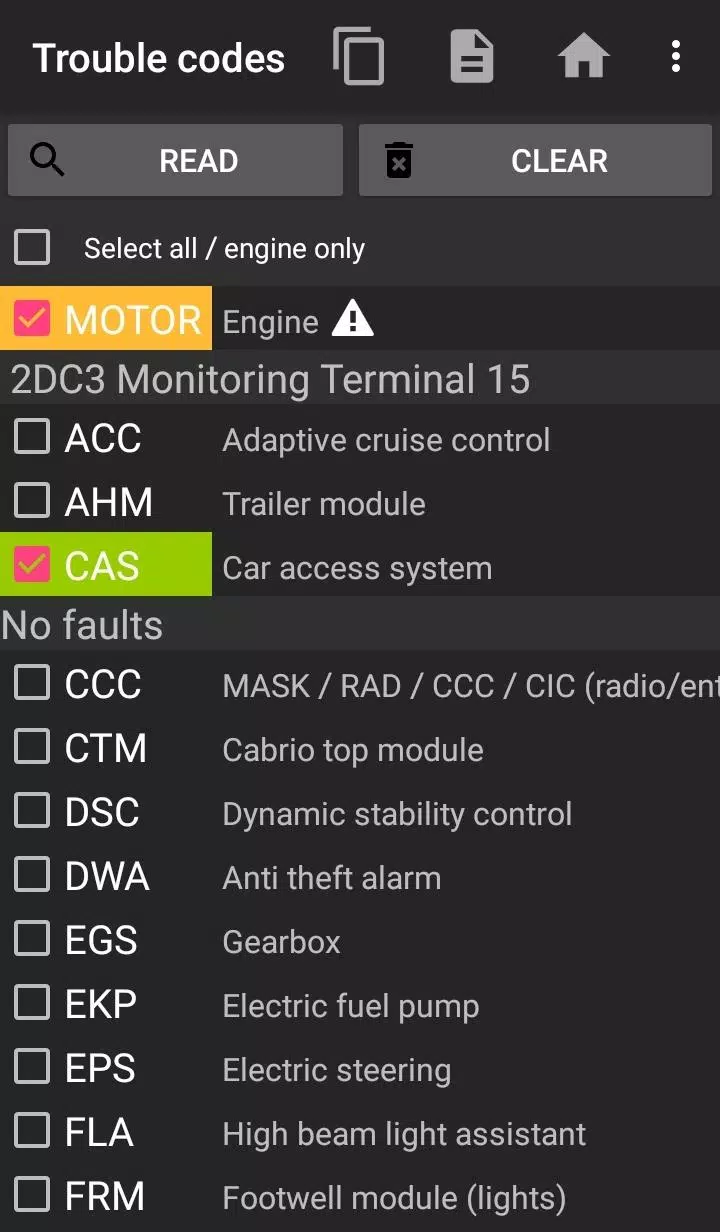

bimmer-tool Lite Captura de pantalla 0

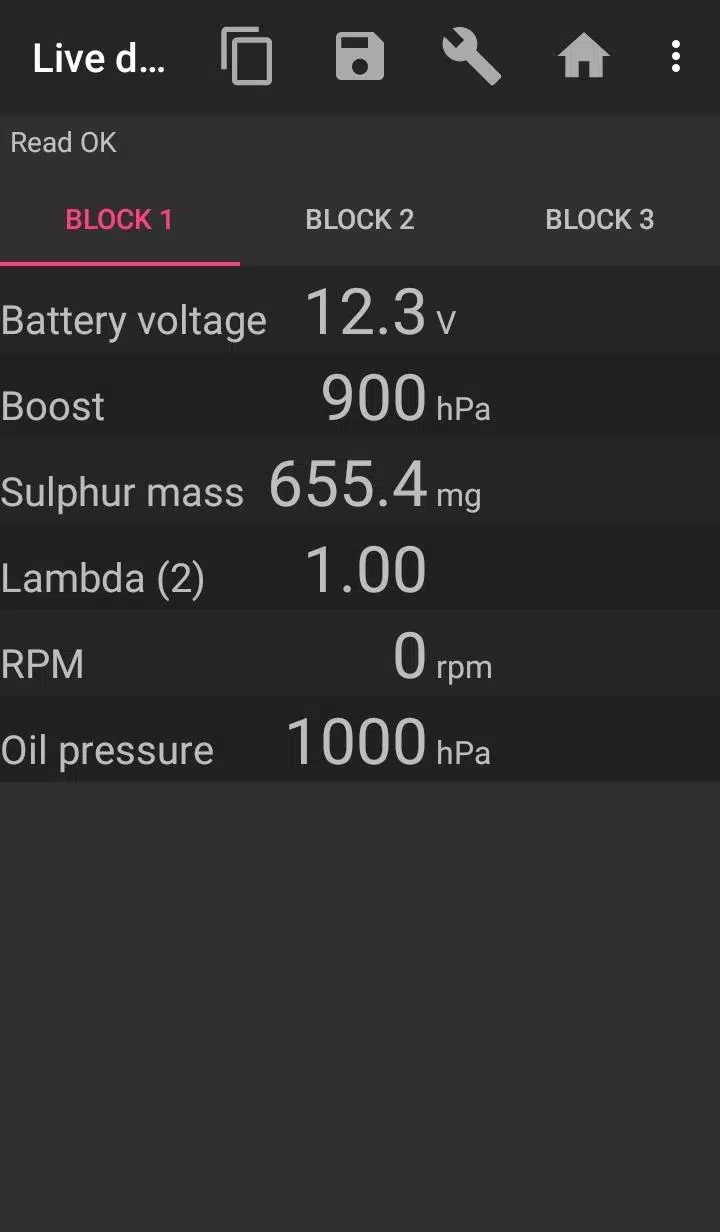

bimmer-tool Lite Captura de pantalla 1

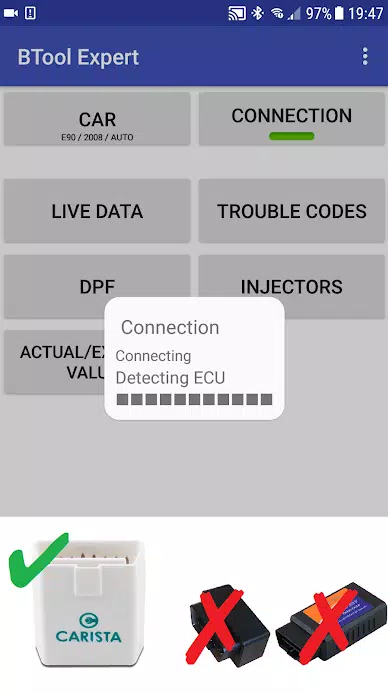

bimmer-tool Lite Captura de pantalla 2
